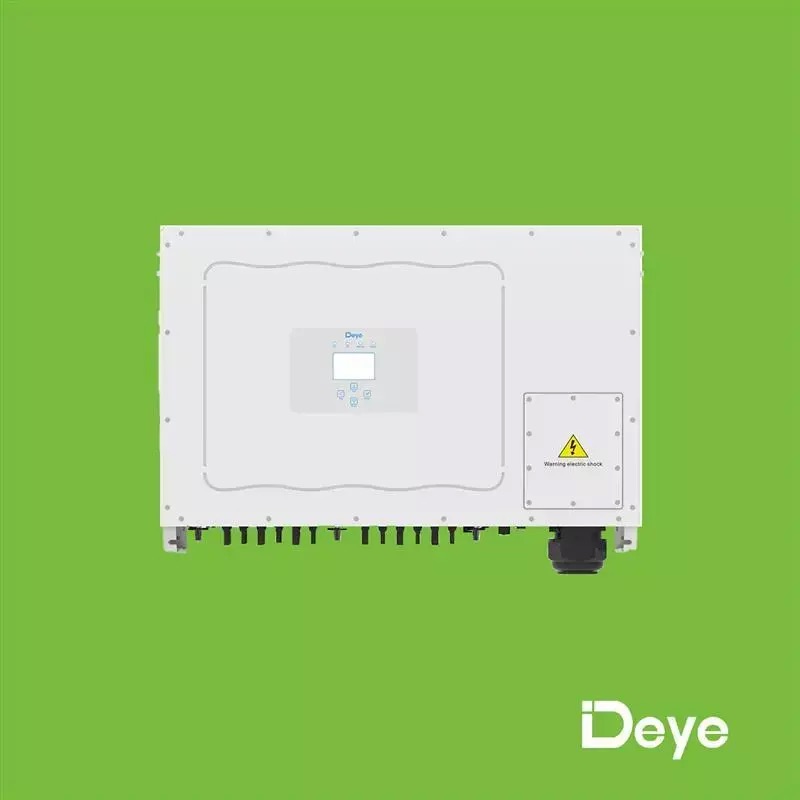

Deye HV String Inverter 100kW 3-Phase (SUN-100K-G03)

Description

Exceptional Efficiency: Maximum efficiency up to 98.8%, , minimizing losses and maximizing the return on investment for solar installations. Multiple MPPT Channels: 6 Power Point Tracking (MPPT) channels Wide MPPT Voltage Range: 200-850V Advanced Safety and Protection Features: DC polarity reverse connection protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection, and ground fault current monitoring PID Mitigation and Zero Export Functionality: helps to maintain the performance of the solar panels over time Robust Design: Encased in an IP65-rated enclosure, withstand in harsh environmental conditions and operate within a wide temperature range of -25°C to +60°C, with derating above 45°C Comprehensive Grid Compliance Versatile Communication and Monitoring Options: supports various communication interfaces such as GPRS, Wi-Fi, Bluetooth, 4G, LAN, RS485, and RS232. Lightweight and Compact: (approximately 81 kg), with dimensions of 824×516×312.7 mm Grid Support and Power Quality Specifications: Rated AC Output Active Power: 100kW Maximum PV Input Power: Up to 150kW Grid Connection Form: 3L/N/PE Rated Output Voltage: 220/380V, 230/400V THD: Total Current Harmonic Distortion <3% Power Factor Adjustment Range: 0.8 leading to 0.8 lagging Max. 6 MPP trackers, Max. efficiency up to 98.8% Dimensions: 824×516×312.7 mm Weight: approximately 81 kg

Listing details

Category

Power & Energy › Inverter Batteries

Condition

Brand new

Specification

Lithium
